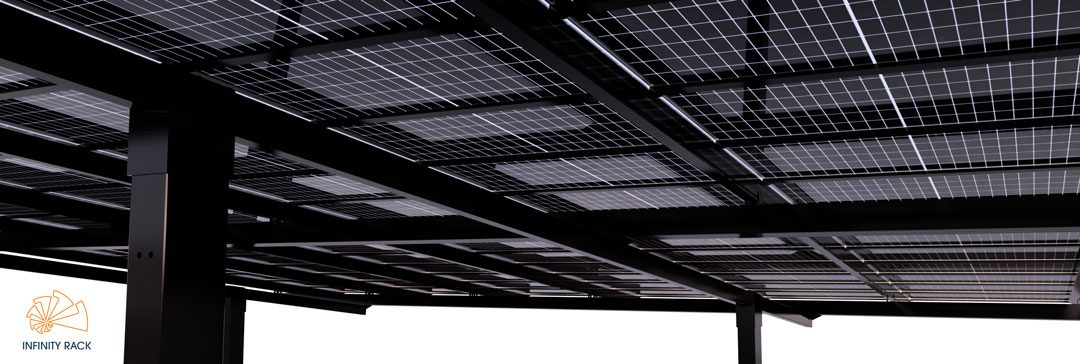

Super Span Structures
Watertight canopies for large spaces, with a maximum depth of just under 70ft, ideal for parking garages, entrance ways, and fleet charging stations.
Built to withstand extreme weather conditions to ensure durability and performance, our super span is the largest structure we offer
Choose your Infinity Rack
Enhance your outdoor space, create covered walkways, protect your vehicles or set up outdoor event areas with this watertight shade structure.
All of our structures are mechanically watertight, feature internal wire chaseways to protect wiring while maintaining a sleek aesthetic. You will never see hanging wires or water damage from drips under our structures.
Flexible by Design
Integrated Wiring
All wiring is fully encapsulated within our beams, with separate AC and DC chaseways and integrated conduit pathways in the post bases for routing wiring or gas lines directly into the structure.
Lighting
Dotless LED light strips integrate perfectly into T-bolt slots of our frame and roof beams add accent lighting to carports and pergolas
Customizable
Easily hang accessories such as chairs, TVs, EV chargers and more using M10 T-bolts on our frame or roof beams.
Color Options
2604 powder coating provides a long-lasting, UV-resistant, highly durable finish. Standard colors include black, white, and beige, with custom finishes available including wood grain, marble, and more.
Product FAQs
What's Included
What's Included
Includes everything required to build the pergola or carport structure including all steel columns, aluminum roof beams, hardware, post bases, brackets, stamped engineering plan sets, and optionally LED lights strips and bi-facial modules. It does not include inverters, batteries, concrete footers, and other balance of system items.
Modules
Modules
While we can design our systems around any framed solar module, we recommend large format (e.g., 590W) bi-facial modules with long leads (1500mm+) and 35mm frames. Modules can be sourced from Infinity Rack or purchased from your distributor of choice.
Installation
Installation
Infinity Rack partners with qualified contractors nation-wide to ensure a seamless installation process. While Infinity Rack does not offer installation services, we provide unlimited virtual support as well as the additional option to add an on-site technician to assist with the installation.
Ease of Installation
Ease of Installation
All major components are fastened together with 3/8” T-Bolts similar to standard rooftop solar racking. Using T-bolts and slots allows for adjustable framing for any module size, column placement requirements and ease of installation. Adjustable post bases further simplify installation by enabling easy alignment. Our cantilever carports feature a welded steel tube extending from the T-top into the column, locking the structure into place prior to bolting for a safer and more efficient installation. This design also allows for fine adjustment during assembly to ensure the T-tops remain level and aligned.
Wiring
Wiring
Our modular beam and post system features integrated AC and DC chaseways with open post bases for routing conduit directly into the structure, allowing all wiring to remain fully concealed with no exposed conduit.
Durability
Durability
Standard configurations can sustain a maximum of 195mph wind speed, and snow loads of up to 100psf. Our structures can handle the highest wind, snow load, and seismic zones nationwide. Our steel is galvanized and then a powder coated or zinc + wet pait combination is applied for a tough, long-lasting finish.
Modular
Modular
Our structures are modular, utilizing interchangeable components throughout the system. Aside from height and steel post bases, aluminum pergolas and carports are structurally identical
Structure Sizes
Structure Sizes
Structures can be customized to fit your needs with an unlimited structure length and maximum depth of 61 feet (additional structures can be matched up for continuous coverings in an unlimited length).
Max Clear Height
Max Clear Height
32 feet.
Engineering
Engineering
Every purchase includes site specific, engineered stamped plans.
Warranty
Warranty
A Limited Warranty applies to framing and solar mounting products manufactured or distributed by Infinity Rack. There is a lifetime structural warranty on all Infinity Rack framing and brackets, 10 year warranty on gaskets and paint, and 6 month warranty on lighting.
Certifications
Certifications
UL 2703 certifiied. Infinity Rack uses all domestic aluminum and steel which qualifies the structure for the domestic content bonus.
Purchasing
Purchasing
Get started by filling out a quote or contact form to connect with an Infinity Rack team member. You do not need an existing contractor partner to get started—Infinity Rack systems are available for purchase by homeowners, commercial property owners, contractors, engineers, architects, and distributors alike.
| Product Details | Specifications |
|---|---|
| Max Span Between Columns | 45 feet (custom solutions for longer spacing) |
| Max Span on Roof Beam | 18 feet (6 feet past steel framing) |
| Max Clear Height | 32 feet |
| Max Structure Length | Unlimited. |
| Max Structure Depth | 61 feet (can be matched up with additional structures for continuous covering) |
| Powder Coat / Wet Paint | 2604 (Optional 2605) or Zinc + Wet Paint |
| Standard Color Options | White, Black, Beige. Can be two-tone. |
| Custom Colors | Custom colors such as wood grain are available |
| Aluminum Alloy & Temper | 6005A T6 (roof beams), 6063-T6 (all other components) |
| Max Wind Speed | 195mph |
| Max Snow Load | 100psf |
MISSION
Infinity Rack envisions a future where every structure doubles as a source of clean power—seamlessly blending design, function, and resilience. We design and manufacture solar canopies, carports, pavilions, and the structural systems that support fully enclosed, multi-purpose buildings. By transforming solar into usable space, we help homeowners, businesses, developers, and architects maximize ROI and build smarter, more resilient communities.
